64430 Aluminium Sheet
Aluminium 64430 Sheet tend to lose their strength when they are exposed to temperatures of about 200-250°C. However, 64430 Aluminium Sheet strength increases at subzero temperatures. They have high corrosion resistance.
64430 Aluminium Sheet Temper 0, H32, H34, H38 as per ASTM B209, ASTM-B-209, EN573, and EN485 international standards. Aluminium Extrusions Manufacturer China | Aluminium Extrusion Profiles China | Aluminium Extruded Sections China | Aluminium Extruded Products China
Sasa alloy is the leading manufacturer and exporter of 64430 Aluminium Sheet. Supplier of ASTM B209 64430 Aluminium Sheet from 0.5mm to 5mm Thick 1000mm x 1000mm to 2500mm x 1250mm Tempers manufactured in accordance with international standards ASTM B209, ASTM-B-209, EN573, and EN485, check 64430 Aluminium Sheet price. The general widths of 64430 H16 Aluminum sheets are 1000mm, 1250mm and 1500mm, while common lengths are 2000mm, 2500 mm and 3000mm respectively. Wholesale Trader of 64430 H14 Aluminium Sheet offered by Sasa alloy , China. Stockist of 64430 Aluminium Sheet, H32 64430 Aluminium Stucco Sheet, H38 Commercial 64430 Aluminium Sheet, ASME SB209 64430 Aluminium Patterned Sheet, 64430 Aluminium Embossed Sheet, 64430 Aluminium Extruded Sheet, 64430 Aluminium Sheet and 64430 Aluminium Sheet in China.
Standard Dimensions of 64430 Aluminium Sheet
Standard dimensions (a x b) of Aluminium 64430 Sheet
Aluminium 64430 Sheet up to 9.9 mm
2.000 x 1.000 mm
2.500 x 1.250 mm
3.000 x 1.500 mm
Oversize Aluminium 64430 Sheet
4.000 x 2.000 mm
6.000 x 2.500 mm
8.000 x 2.500 mm
Other dimensions on request
| Alloy | ASTM B209 1050, 1060, 1100, 1235, 3003, 3004, 3105, 5052, 5754, 6061, 8011 |
| Aluminium 64430 Sheet Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium 64430 Sheet Thickness | 0.5mm-150mm |
| Aluminium 64430 Sheet Width | 500-2000mm |
| Aluminium 64430 Sheet Length | to clients’ requirement |
| Aluminium 64430 Sheet Coating | Polyester, Fluorocarbon, polyurethane and epoxy coating |
| 64430 Aluminium Sheet Coating finish | PVDF, POLYESTER(PE) |

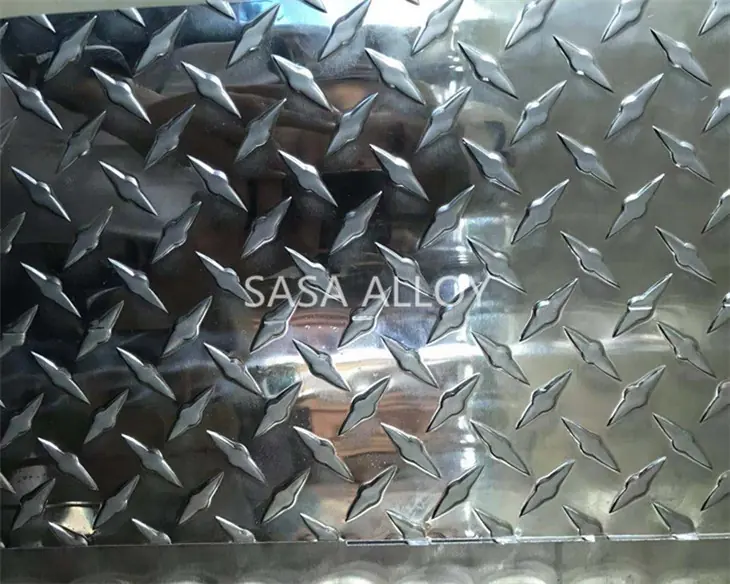

| Surface | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Gloss | Meet the customer requirement |
| Total coating thickness | PVDF coating: More than 25 micron; Polyester coating: More than 18 micron |
| Coating hardness | (pencil hardness) more than 2H |
| Coating adhesive | No lower than1st grade |
| Impact resistance | No cracking or peeling (50kg/cm, ASTMD-2794: 1993) |
| Flexibility (T-bend) | 2T |
| MEK resistance | More than 10 |
| Available Aluminium 64430 Sheet Stock Sizes | 1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape. |
| Aluminium 64430 Sheet Delivery Time | 30-60 days after receiving the prepayment |

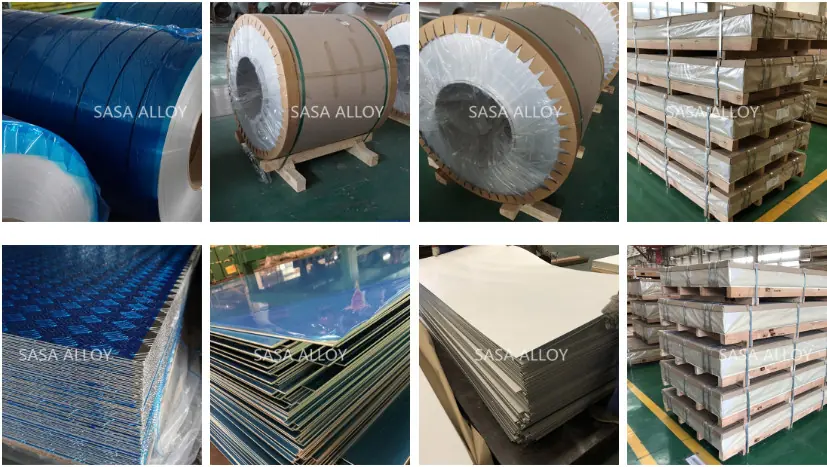

| Aluminium 64430 Sheet Packaging Details | Standard export package. One pallet is about 2-3 ton.Two steel belts in width and three in width. One 20GP container can load about 18-20 tons Aluminium 64430 Sheet. One 40GP container can load about 24 tons Aluminium 64430 Sheet |
| ASTM B209 Alloy 64430 Outer packing | Export standard, wooden pallet |
| Bottom side Aluminium 64430 Sheet is coated with protective polyester material, thickness more than 6 micron | |
| Export to | Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc. |
Types of 64430 Aluminium Sheet
| 64430 Aluminium Sheets Product Range | ||||
|---|---|---|---|---|
| Alloy No. | Thickness (mm) |
Width (mm) |
Length (mm) |
Temper |
| A1050, A1060, A1070, A1100 | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
| A3003, A3105, A3004 | 0.2-5.0 | 20-2200 | 20-8000 | O, H14, H18, H24 |
| A5052, A5005, A5083, A5086, A5754 | 0.2-5.0 | 20-2200 | 20-8000 | O, H18, H24, H32, H34, H111, H112 |
| A6061, A6082, A6063 | 0.2-5.0 | 20-2200 | 20-8000 | T4, T6, T651 |
| A8011 | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
Aluminium 64430 Sheets:
1100-H14 Aluminum Sheet: ASTM-B-209
2024-T3 ALCLAD Aluminum Sheet: AMS-QQ-A-205/5, ASTM-B-209, AMS-4041
2024-T3 BARE Aluminum Sheet: AMS-QQ-A-205/5, ASTM-B-209, AMS-4037
2219-T6 Aluminum Sheet:
2219-O Aluminum Sheet: AMS-QQ-A-250/30
3003-H14 Aluminum Sheet: ASTM-B-209
3003-O Aluminum Sheet: ASTM-B-209
4047-F Aluminum Sheet: AMS-4185, BAlSi-4
5052-H32 Aluminum Sheet: ASTM-B-209, AMS-4016
5052-H38 Aluminum Sheet: ASTM-B-209
5052-O Aluminum Sheet: ASTM-B-209, AMS-4015
6061-O Aluminum Sheet: ASTM-B-209, AMS-4025
6061-T4 Aluminum Sheet: ASTM-B-209, AMS-4026
6061-T6 Aluminum Sheet: ASTM-B-209, AMS 4027
7075-T6 Aluminum Sheet: AMS-QQ-A-250/12, AMS-4045
7075-O ALCLAD Aluminum Sheet: ASTM-B-209
7075-O BARE Aluminum Sheet: AMS-QQ-A-250/12, AMS-4045
Aluminum Specular Lighting Sheet
Standard Specification of 64430 Aluminium Sheet
Standards and specifications by country
| Specification | Alloy | Temper | Company |
|---|---|---|---|
| Europe | |||
| EN 2089/2395 | 2014A | T6(T62)/T4(T42) | |
| EN 2087/2088 | 2014A clad | T6(T62)/T4(T42) | |
| EN 4101 | 2024 | T4 | |
| EN 2090/2091/2703/4001 | 2024 clad cmq | T3/T4/T4(T42)/T351 | |
| EN 3474/3997/3998/3999 | 2024 cmq | T81/T3/T4(T42)/T351 | |
| EN 2694/EN 3341 | 6061 | T6(T62)/T4(T42) | |
| EN 4449/4450 | 7050 | T76/F(T762) | |
| EN 2696 | 7075 | T6(T62) | |
| EN 2092 | 7075 clad | T6(T62) | |
| EN 2802/3333 | 7475 | T761/F(T762) | |
| EN 2803/3332 | 7475 clad | T761/F(T762) | |
| France | |||
| AIR 9048.010/.030/ | 2014 | F(T42)/F(T62)/T4/ | |
| .020/.040/.050 | 2014 | T6/T451 | |
| AIR 9048.060/.080/.070/.090 | 2014 clad | F(T42)/F(T62)/T4/T6 | |
| AIR 9048.100/.110/.120 | 2024 | ||
| AIR 9048.130/.140 | 2024 clad | F(T42)/T3 | |
| AIR 9048.150 | 2618A | H28(T62) | |
| AIR 9048.170 | 2618A clad | H28(T62) | |
| AIR 9048.190/.200 | 5086 | O, H111/H22, H32 | |
| AIR 9048.210/.220/.230/.240 | 6061 | O, H111(T42)/T4/ O, H111(T62)/T6 | |
| AIR 9048.260/.270 | 7075 | T6/T76 | |
| AIR 9048.280 | 7075 clad | T6 | |
| AIR 9048.290 | 7475 | T76 | Boeing |
| Germany | |||
| W.-Nr. 3.1254 | 2014A | T4, T6 | |
| W.-Nr. 3.1354 | 2024 | O(T42), T3 | |
| W.-Nr. 3.1364 | 2024 clad | O(T42), T3 | |
| W.-Nr. 3.3214 | 6061 | O(T62), T6 | |
| W.-Nr. 3.4364 | 7075 | T6 | |
| W.-Nr. 3.4374 | 7075 clad | O(T62), T6 | |
| W.-Nr. 3.4377 | 7475 clad | T76 | |
| UK | |||
| BS L16/17 | 1200 | H4/O | |
| BS L156/157/158*/159* | 2014A | ||
| 158*/159* | 2014A clad | (T42)(T62) | BAE Systems |
| BS L163/164/165 | 2014A clad | T3/F(T42), T4/T6 | |
| BS L166*/167* | 2014A clad | F(T42), T4/T6 | |
| BS L109/110 | 2024 clad | T3/F(T42) | |
| DTD5070 | 2618A clad | T6 | |
| BS L59/60/61 | 3103 | H6/H2/O | |
| BS L80/81 | 5251 | O/H6 | |
| BS L113 | 6082 | T4, T6 | |
| BS L88 | 7075 clad | T6 | |
| USA | |||
| AMS QQ-A-250/3 | 2014 clad | O, T4, T6 | |
| AMS QQ-A-250/4 | 2024 | O, T3 | |
| AMS 4037 | 2024 | T3 | |
| AMS QQ-A-250/5 | 2024 clad | O, T3 | |
| AMS 4041 | 2024 clad | T3 | |
| AMS QQ-A-250/30 | 2219 | O(T62), T31(T81), T37(T87) | |
| AMS QQ-A-250/2 | 3003 | O, H14 | |
| AMS 4347 | 6013 | T4 | |
| AMS 4216 | 6013 | T6 | |
| AMS 4025/4026/4027 | 6061 | O, F, T4, T42, T45, T6, T62, T651 | |
| AMS QQ-A-250/12 | 7075 | O, T6, T73 | |
| AMS QQ-A-250/24 | 7075 | T76 | |
| AMS QQ-A-250/13 | 7075 clad | O, T6, T73 | |
| AMS QQ-A-250/26 | 7075 clad with 7011 | T76 | |
| AMS QQ-A-250/25 | 7075 clad with 7072 | T76 | |
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| EN AW-1070 A | – | 1070 | Al-99.7 | Al-99.7 | 19700 | – |
| EN AW-1100 | IC | 1100 | Al-99.0 | Al-99.0 | 19000 | 2 S |
| EN AW-2011 | FC1 | 2011 | AlCuBiPb | AlCu6BiPb | – | 28S |
| EN AW-2014 | HE15 | 2014 | AlCuSiMn | AlCu4SiMg | 24345 | B26S |
| EN AW-2024 | – | 2024 | AlCuMg2 | AlCu4Mg1 | – | 24 S |
| EN AW-3003 | N3 | 3003 | AlMnCu | AlMn1Cu | 31000 | 3 S |
| EN AW-3103 | – | 3103 | – | AlMn1 | – | – |
| EN AW-6101A | E91E | 6101 | E AlMgSi 0.5 | E AlMgSi(A) | 63401 | D50S |
| EN AW-6005 | – | 6005 | AlMgSi0.7 | AlSiMg | 62400 | C51S |
| EN AW-6351 | HE30 | 6351 | AlMgSi1 | AlSiMg0.5Mn | 64430 | B51S |
| EN AW-6060 | – | 6060 | AlMgSi 0.5 | AlMgSi | – | – |
| EN AW-6061 | HE20 | 6061 | AlMgSiCu | AlMg1SiCu | 65032 | 65S |
| EN AW-6063 | HE9 | 6063 | AlMgSi0.5 | AlMg0.7Si | 63400 | 50S |
| EN AW-6082 | HE30 | 6351 | AlMgSi1 | AlSi1MgMn | 64430 | B51S |
64430 Aluminium Sheet Equivalent Grades
| China |
U.S.A. |
BRITAIN |
CANADA | GERMANY |
RUSSIA |
I.S.O. |
FRENCH | |
|---|---|---|---|---|---|---|---|---|
| New IS | Old IS | (A.A.) |
(B.S.) |
(DIN) | – | – | – | |
| 19501 | 1E | 1050(E.C.) | 1E | C 1S | E-Al 99.5 | – | Al-99.5 | 1050A |
| 19500 | 1B | 1050 | 1B | 1S | A-99.5 | – | – | – |
| 19600 | – | 1060 | – | – | – | – | Al-99.7 | – |
| 19700 | – | 1070 | – | – | Al-99.7 | – | Al-99.8 | – |
| 19800 | 1A | 1080 | 1A | – | – | – | Al-99.0 | 1200 |
| 19000 | 1C | 1100 | 1C | 2S | Al-99.0 | AD | Al-Cu-6 Bi Pb | 2011 |
| – | – | 2011 | FC1 | 28S | Al-Cu-Bi-Pb | – | – | – |
| 24345 | H15 | 2014 | H15 | B26S | Al-Cu-Si | AK | Al-Cu-4Mg Si | – |
| 24534 | H14 | 2017 | H14 | 17S/16S | – | D1 | Al-Cu-4Mg 1 | 2024 |
| – | – | 2024 | – | 24S | Al-Cu-Mg.2 | – | AlCu-4PbMg | 2030 |
| – | – | 2030 | – | – | Al-Cu-Mg-Pb | – | Al-Cu2-Mg1.5-Ni | 2618 |
| – | – | 2618 | 2618 | – | – | – | A-Mn 1 | 3003 |
| 31000 | N3 | 3003 | N3 | 3S | Al-Mn | A-Mn | Al Mn 1 Mg 1 | 3004 |
| – | – | 3004 | – | Al-Mn.1-Mg.1 | Al Mn 1 Mg 0.50 | 3005 | ||
| – | – | 3005 | – | Al-Mn.1-Mg.0.50 | Al-Si5 | 4043 | ||
| 43000 | N21 | 4043 | N21 | 33S | Al-Si-5 | AK | – | – |
| 46000 | N2 | 4047 | N2 | 35S | – | – | A-Mg-1 | – |
| 51000 | – | 5005 | – | B57S | – | – | Al-Mg-2 | 5251 |
| 5051 | 5251 | Al-Mg.2 Mn.0.30 | A-Mg-2.5 | 5051 | ||||
| 52000 | N4 | 5052 | N4 | M57S | Al-Mg.2 | A-Mg | A-Mg-4 | – |
| 53000 | N5 | 5086 | N5 | 54S | – | A-Mg-3 | Al-Mg-4.5 Mn | 5083 |
| 54300 | N8 | 5083 | N8 | D54S | Al-Mg-4.5 Mn | – | Al-Mg.5 | 5356 |
| 55000 | N6 | 5056 | N6 | A56S | Al-Mg.5 | – | Al-Mg.3-Mn | 5454 |
| 5454 | 5454 | Al-Mg.2.7-Mn | – | Al.Mg.3 | 5754 | |||
| 5754 | Al-Mg.3 | Al-Mg-1Si Cu | – | |||||
| 65032 | H20 | 6061 | H20 | 65S | Al-Mg-Si Cu | – | Al-Mg-Si | – |
| 63400 | H9 | 6063 | H9 | 50S | Al-Mg-Si 0.5 | – | Al-Si-1 Mg | 6081 |
| 64430 | H30 | 6351 | H30 | B51S | Al-Mg-Si 1 | AV | Al-Si-1 Mg Mn | 6082 |
| 6082 | 6082 | Al-Mg-Si 1 | – | – | – | |||
| 64423 | H11 | 6066 | H11 | C62S | – | – | – | |
| 62400 | – | 6005 | – | C51S | – | – | – | – |
| 63401 | 91E | 6101 | 91E | D50S | E.Al.Mg.Si 0.5 | – | – | – |
| 64401 | – | 6201 | – | – | – | – | – | |
| – | – | 7020 | 7020 | – | – | – | 7020 | |
| 74530 | – | 7039 | – | D74S | – | – | 3004 | |
| – | – | 7075 | DTD-5124 | 75S | – | Al-Zn 6 Mg Cu | 7075 | |
| 40800 | 8011 | – | Al-Fe-Si | 8011 | ||||
64430 Aluminium Sheet Sizes
| Sizes (mm) | Theoretical Mass KG/sheet |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
64430 Aluminium Sheet Weight Chart
Width: 1.000 mm | Length: 2.000 mm
| Product | Thickness | Weight |
|---|---|---|
| 64430 Aluminium Sheet | 0,30 mm | 0,810 Kg/m2 |
| 64430 Aluminium Sheet | 0,40 mm | 1,080 Kg/m2 |
| 64430 Aluminium Sheet | 0,50 mm | 1,350 Kg/m2 |
| 64430 Aluminium Sheet | 0,60 mm | 1,620 Kg/m2 |
| 64430 Aluminium Sheet | 0,70 mm | 1,890 Kg/m2 |
| 64430 Aluminium Sheet | 0,80 mm | 2,160 Kg/m2 |
| 64430 Aluminium Sheet | 0,90 mm | 2,430 Kg/m2 |
| 64430 Aluminium Sheet | 1,00 mm | 2,700 Kg/m2 |
| 64430 Aluminium Sheet | 1,20 mm | 3,240 Kg/m2 |
| 64430 Aluminium Sheet | 1,40 mm | 3,780 Kg/m2 |
| 64430 Aluminium Sheet | 1,50 mm | 4,050 Kg/m2 |
| 64430 Aluminium Sheet | 1,60 mm | 4,320 Kg/m2 |
| 64430 Aluminium Sheet | 1,80 mm | 4,860 Kg/m2 |
| 64430 Aluminium Sheet | 2,00 mm | 5,400 Kg/m2 |
| 64430 Aluminium Sheet | 2,20 mm | 5,940 Kg/m2 |
| 64430 Aluminium Sheet | 2,50 mm | 6,750 Kg/m2 |
| 64430 Aluminium Sheet | 3,00 mm | 8,100 Kg/m2 |
| 64430 Aluminium Sheet | 4,00 mm | 10,800 Kg/m2 |
| 64430 Aluminium Sheet | 5,00 mm | 13,500 Kg/m2 |
| 64430 Aluminium Sheet | 6,00 mm | 16,200 Kg/m2 |
| 64430 Aluminium Sheet | 10,00 mm | 27,000 Kg/m2 |
| 64430 Aluminium Sheet | 12,00 mm | 32,400 Kg/m2 |
| 64430 Aluminium Sheet | 15,00 mm | 40,500 Kg/m2 |
| 64430 Aluminium Sheet | 20,00 mm | 54,000 Kg/m2 |
64430 Aluminium Sheet Chemical Composition
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| H 30 | 64430 | 6351 | — | 0.1 | 0.4 | 1.2 | 0.6 | 1.3 | 0.6 | 0.4 | 0.3 | 0.3 | Zinc (4.5%) | ||
Aluminium 64430 Sheet Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 250 MPa | 36260 psi |
| Yield strength | 150 MPa | 21756 psi |
| Shear strength | 200 MPa | 29008 psi |
| Fatigue strength | 90 MPa | 13054 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.033 | 0.033 |
| Elongation | 20% | 20% |
| Hardness | 95 | 95 |
64430 Packing Information of Aluminum sheet :
Application of 64430 Aluminium Sheet
Sasa alloy 64430 Aluminium Sheet is the most widely used form of Industrial Aluminium. 64430 Aluminium Sheets find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.
