Incoloy 800 800H 800HT Fasteners
Specifications of Incoloy 800 800H 800HT fasteners: |
Incoloy 800, 800H, and 800HT are high-performance nickel-iron-chromium alloys known for their excellent oxidation and carburization resistance at elevated temperatures. These alloys are widely used in industries such as petrochemical, power generation, and nuclear applications due to their superior mechanical properties and resistance to creep and stress rupture. Fasteners made from Incoloy 800 series materials ensure reliability and longevity in harsh environments, making them ideal for high-temperature and corrosive conditions. Their versatility allows for a variety of applications, ensuring structural integrity and safety in critical operations.
Grade | 800,800H,800HT,etc. |
Standard | ASTM B166 |
Length | 3 mm to 200 mm, customizable |
Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Screw Type | Threaded Screw, Hex Head Screw, Socket Head Screw, Socket Set Screw, Blind Rivet, Concrete Screw, Shoulder Screw, Anchor Screw, Panel Screw, Machine Screw etc. |
Bolts Types | Hex Head Bolts, Hex Bolts, Square Bolts, Eye Bolts, T Bolts, U Bolts, Lag Bolts, Counter sunk Bolts etc. |
Washer Types | Lock Washer, Machine Washers, Star Washers, Sealing Washer, Split Washer etc. |
Studs Types | Double Ended Studs, Threaded Tod, Tie Bars, Tie Rodsetc. |

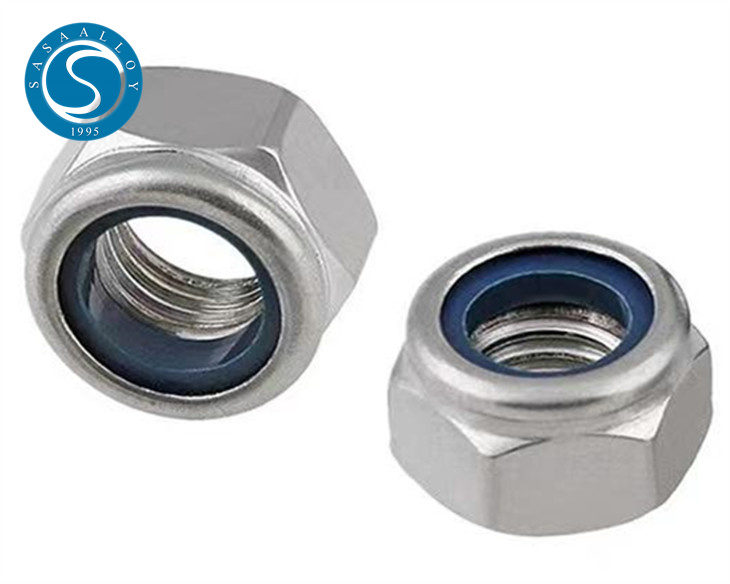

Nut Types | Coupling Nut, Hex Head Nut, Wing Nut, Square Nut, Panel Nut, T Nut, Acorn Nuts, Dome Nut, Eye Nut, Lock Nut etc. |
Mill Test Certificate | EN 10204 3.1 or EN 10204 3.2 |
Equivalent Grades of Incoloy 800 FASTENER : |
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
800H | 1.4958 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
800HT | 1.4859 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
CHEMICAL COMPOSITION OF Incoloy 800 800H 800HT FASTENER: |
Grade | Fe | Ni | Mn | Cu | Si | C | S | Cr | Al | Ti |
800 | 39.5 | 30.0-35.0 | 1.5 | 0.75 | 1.0 | 0.10 | 1.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 |
800H | 39.5 | 30.0-35.0 | 1.5 | 0.75 | 1.0 | 0.05-0.10 | 1.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 |
800HT | 39.5 | 30.0-35.0 | 1.5 | 0.75 | 1.0 | 0.06-0.10 | 1.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 |
Mechanical Properties of Incoloy Alloy 800 /800H/ 800HT FASTENER : |
Element | Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
800 | 7.94 g/cm3 | 1385 °C | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30% |
Inconel Alloy 800 /800H/ 800HT FASTENER Types: |
SASA ALLOY'S Quality Assurance: |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
Why Choose Us: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.
Incoloy fasteners Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
