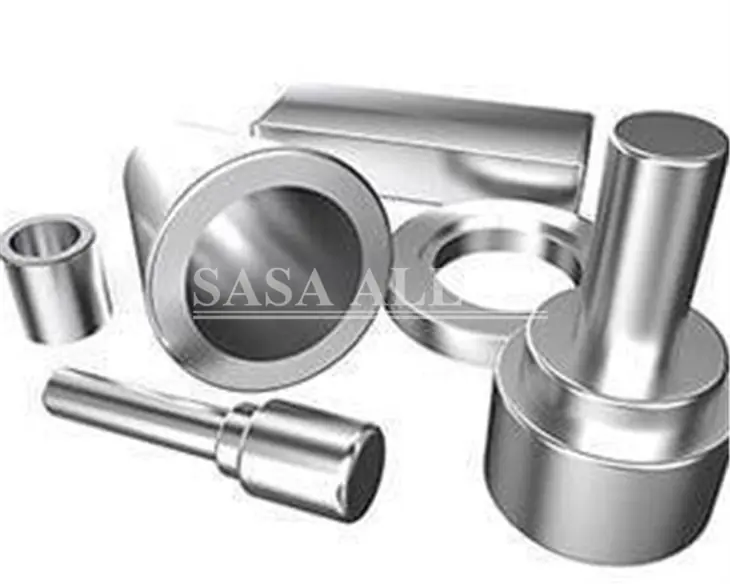

Incoloy 800 /800H / 800HT Forgings
| Specifications of Incoloy 800 /800H / 800HT Forgings: |
Retains strength at elevated temperatures, making it suitable for high-temperature applications.Allows for fabrication and forming processes without cracking.Especially in 800H and 800HT grades, making them ideal for applications involving prolonged exposure to high temperatures and stresses.Excellent resistance to oxidation and scaling at high temperatures.Resists carburization in petrochemical applications, where carbon-bearing gases are present.Due to their high strength and resistance to oxidation and carburization.Equipment and piping in high-temperature and corrosive environments.
| Specifications | ASTM B564 / ASME SB564 |
| Flat bar blocks | up to 27" width and 15,000 lbs |
| Cylinders and sleeves | up to 50" maximum O.D. and 65" maximum length |
| Discs and hubs | up to 50" diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84" maximum O.D. and 40" maximum length |

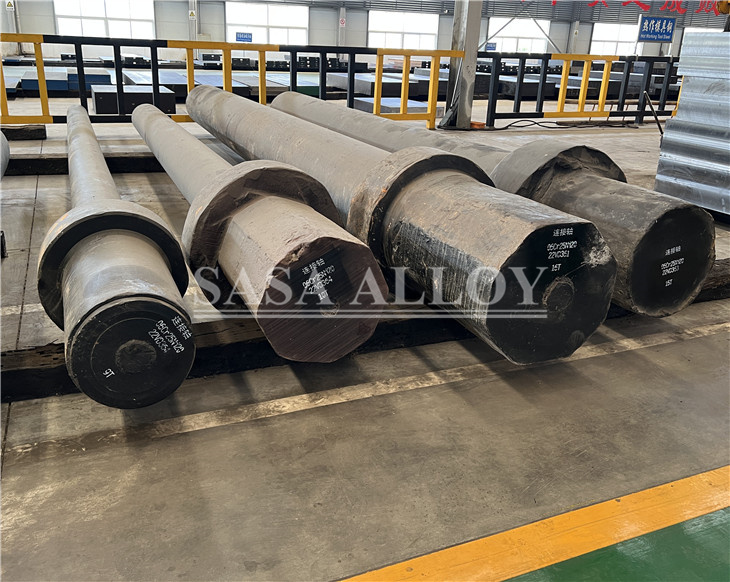

| Rounds, shafts and step shafts | up to 144" maximum length and 20,000 lbs. |
| Grades | Hastelloy C276 Forging UNS (N10276), DIN (2.4819) |
| Other Type Of Incoloy 800 800H 800HT Forged: |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Equivalent Grades Of Incoloy 800 /800H / 800HT Forgings: |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR | BS |
| 800 | 1.4876 | N08800 | NCF 800 | ЭИ670 | X10NiCrAlTi32-20 |
XH32T | NA 15 |
| 800H | 1.4958 | N08810 | NCF 800H | ЭИ670 | X10NiCrAlTi32-20 | XH32T | NA 15(H) |
| 800HT | 1.4959 | N08811 | NCF 800HT | ЭИ670 | X8NiCrAlTi32-21 | XH32T | NA 15(HT) |
| CHEMICAL COMPOSITION OF Inconel 800 /800H / 800HT Forgings: |
| Grade | C | Mn | Si | S | Fe | Ni | Cr | Ti | Al | Cu |
| 800 | 0.1 | 1.5 | 1.0 | 0.015 | 39.5 | 30.0-35.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 | 0.75 |
| 800H | 0.05-0.1 | 1.5 | 1.0 | 0.015 | 39.5 | 30.0-35.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 | 0.75 |
| 800HT | 0.06-0.1 | 1.5 | 1.0 | 0.015 | 39.5 | 30.0-35.0 | 19.0-23.0 | 0.25-0.60 | 0.85-1.2 | 0.75 |
| SASA ALLOY'S Manufacturing Process for Forged Bars and rings: |
The square/flat bars are made from ingots and are processed after giving required reduction ratio and discarding hot top and bottom for homogeneity. They are either processed by hot rolling or hot forging. These bars are further heat treated as per customer requirements by any one of the following processes
1.Annealing
2.Normalizing
3.Stress Relieving
4.Quenching and Tempering
5.Spheroidizing Annealing
| Quality Check of Forged: |
Following checks are conducted in bars/rings/step shafts and reported in the TEST CERTIFICATE as per customer requirement.
1.Surface inspection is carried out of each bar end to end
2.Positive Material Identification using XRF to certify in process chemistry of each bar
3.100% dimensional verification using calibrated verniers and Go No-4.Go gauges
5.Step down testing
6.Upset forging test
7.NMIR (Non metallic inclusion rating)
8.Macrostructure testing
9.Microstructure phase analysis
10.Grain Size
11.Ultrasonic Testing for internal defects
12.Radioactivity test
13.Gas analysis (O, N, H)
| Why Choose Us: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. Provide SGS TUV report.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
7.Provide one-stop service.
| Packing: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
