Inconel 718 bar

Short Description:

Inconel 718 is a nickel-based superalloy that is known for its high temperature resistance, excellent mechanical properties, and corrosion resistance.

Grade:Inconel 718 – UNS N07718

Specification:ASTM B637 UNS N07718

Diameter: 3mm~800mm

Thickness: 2mm~100mm


Product Detail

Product Tags

Inconel 718 round bar suppliers, Inconel 718 Flat Bar, Inconel 718 Hex Bar Suppliers in China, Inconel 718 Rod, Alloy 718 Hollow Bar Stockist in China, Inconel Alloy 718 Round Rod distributor, Inconel 718 Round Bar manufacturer in China.



Inconel Alloy 718 Round Bar is austenitic nickel-based superalloy. Inconel 718 bar is designated as UNS N07718 and Werkstoff Number 2.4668. Inconel 718 Bright Bar is also known as Nicrofer 5219 Round Bar, Superimphy 718 Round Bar, Haynes 718 Round Bar, Pyromet 718 Round Bar, Supermet 718 Round Bar. and Udimet 718 Round Bar. Inconel 718 Round Bar Chemistry is Nickel 52%, Chromium 19%, Iron, 18%, Columbium 5%, Molybdenum 3%, Titanium 1%. These Alloy 718 Round Bar, Inconel 718 Bar, Inconel 718 Hollow Bar and Inconel 718 Shaft are mainly used in Gas turbine engines ducts, cryogenic tanks, springs and fasteners and motor components. For most applications, Alloy 718 Round Bar / Inconel 718 Forged Bar is specified as: solution annealed and precipitation hardened.Sasa alloy’s Inconel Alloy 718 Bar / Inconel 718 Round Bars is hardened by the precipitation of secondary phases.

Specifications of Inconel Alloy 718 Round Bar:
Grade Inconel 718 – UNS N07718
Specification ASTM B637 UNS N07718, ASTM B 637 / ASME SB 637, AMS 5662, AMS 5663, AMS 5664
Inconel 718 Round bar size Diameter: 3mm~800mm
Inconel 718 Angle bar size 3mm*20mm*20mm~12mm*100mm*100mm
Inconel 718 Square bar size 4mm*4mm~100mm*100mm
Inconel 718 Flat bar size Thickness: 2mm~100mm
Width: 10mm~500mm
Inconel 718 Hex Bar size 2mm~100mm
Inconel 718 Billet Size 1/2″ to 495mm Diameter
Inconel 718 Rectangles Size 33mm x 30mm to 295mm x 1066mm
Inconel 718 Round Bar Standard Dimensions  As the customer required
Finish Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black
Tolerance H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Surface Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Condition Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar
Technique Inconel 718 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod
Inconel 718 Bar Type Drawn Bar, Rolled Bar, Forged Bar, GFM Forged Bar, Open Die Bar, Forged Stepped Shafts, Forged Flat Bar, Forged Square Bar
Also Check price list of Inconel Round Bar, Inconel 625 Round Bar, Inconel 718 Round Bar, Hastelloy Round Bar, Monel Round Bar, Titanium Round Bar, Copper Nickel Bar, Stainless Steel Round Bar
Form Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc.
Our Inconel 718 Round Bar conforms to NACE MR0175/ISO 15156

Type of INCONEL 718 bar:
DSC00008_副本

  • •Alloy 718 Flat Bars
  • •UNS N07718 Flat Bars
  • •ASTM B637 718 Flat Bars
  • •ASME SB637  Alloy 718 Flat Bars



DSC09533_副本

  • •Alloy 718 Hex Bars
  • •UNS N07718 Hex Bars
  • •ASTM B637 718 Hex Bars
  • •ASTM SB637  Alloy 718 Hex Bars



DSC09548_副本_副本

  • •Alloy 718 Rods
  • •UNS N07718 Rods
  • •ASTM B637 718 Rods
  • •ASTM SB637  Alloy 718 Rods



DSC09703_副本

  • •Alloy 718 Round Bar
  • •UNS N07718 Round Bar
  • •ASTM B637 718 Round Bar
  • •ASTM SB637  Alloy 718 Round Bar



DSC09704_副本

  • •Alloy 718 Bright Bars
  • •UNS N07718 Bright Bars
  • •ASTM B637 718 Bright Bars
  • •ASTM SB637  Alloy 718 Bright Bars



DSC09787_副本

  • •Alloy 718 Ingot Bars
  • •UNS N07718 Ingot Bars
  • •ASTM B637 718 Ingot Bars
  • •ASTM SB637  Alloy 718 Ingot Bars





Inconel Alloy 718 Round, Bright, Hex, Threaded Bar Chemical Composition:
  Ni Cr Fe Mo Nb+Ta C Mn Si Ph S Ti Cu B Al Co
Min 50 17 Bal 2.8 4.75 - - - - - 0.65 - - 0.20 -
Max 55 21 - 3.3 5.50 0.08 0.035 0.35 0.015 0.015 1.15 0.30 0.0006 0.80 1.00

718 Inconel Alloy Round Bars Mechanical Properties
0.2% Proof Stress Tensile Strength Elongation Reduction of area Hardness
MPA MPA % % HB
Min Min Min Min Min
1034 1275 12 15 331



Mechanical Properties in Solution Annealed and Aged Condition for Oil patch bar:
0.2% Proof Stress Tensile Strength Elongation Reduction of area Hardness
MPA MPA % % HRC
Min Min Min Min Min
827 1034 17 25 40



ASTM B637 Inconel 718 Bars Equivalent Grades:
STANDARD WERKSTOFF NR. UNS
Inconel 718 2.4668 N07718



Inconel 718 Black Bar Stock List:
Product form Diameter
hot rolled, solution annealed, machined Dia=16mm,Weight=1.62 kg/m
solution treated, machined, centerless ground Dia=20mm,Weight=2.47 kg/m
aged Dia=25mm,Weight=3.89 kg/m
solution annealed, hot rolled Dia=30mm,Weight=5.9 kg/m
age hardened Dia=35mm,Weight=8.2 kg/m
age hardened Dia=40mm,Weight=9.97 kg/m
machining quality, solution treated Dia=60mm,Weight= 22.42kg/m
machining quality, solution treated Dia=65mm,Weight=26.32 kg/m
hot forged, solution annealed Dia=120mm,Weight=89.71 kg/m



Why Choose Us:

1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.

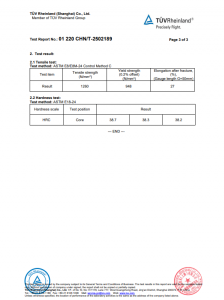

3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. We guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.



Packing:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as

DSC09527_副本   DSC00003_副本   DSC09446_副本
