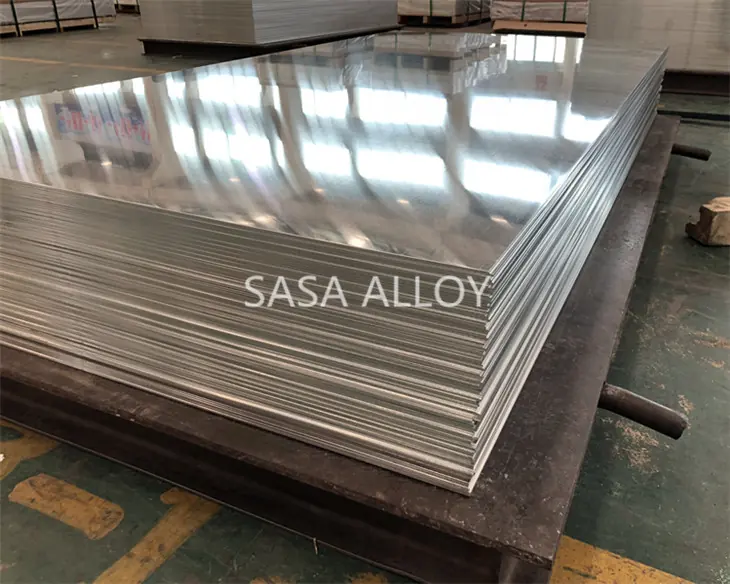

LM2 Aluminium Plate
Made from commercial LM2 grade of aluminium alloy to BS EN. Aluminium LM2 Plate can be anodically treated to give a protective surface of a dark grey colour. The surfaces of die castings, however, are not generally suitable for decorative anodizing. Aluminium Plate LM2 is an aluminum casting alloy with fair durability, good corrosion resistance, and average strength. It is a good choice for most die cast applications that do not require high corrosion (marine applications).
LM2 Aluminium Plate ASTM B209, ASTM-B-209, EN573, and EN485 international standards.
Sasa alloy is the leading manufacturer and exporter of LM2 Aluminium Plate. Supplier of ASTM B209 LM2 Aluminium Plate from 0.5mm to 5mm Thick 1000mm x 1000mm to 2500mm x 1250mm Tempers manufactured in accordance with international standards ASTM B209, ASTM-B-209, EN573, and EN485, check LM2 Aluminium Plate price. The general widths of LM2 H16 Aluminum Plates are 1000mm, 1250mm and 1500mm, while common lengths are 2000mm, 2500 mm and 3000mm respectively. Wholesale Trader of LM2 Commercial Aluminium Plate offered by Sasa alloy , China. Stockist of LM2 Aluminium Plate, H32 LM2 Aluminium Stucco Plate, H38 Commercial LM2 Aluminium Plate, ASME SB209 LM2 Aluminium Patterned Plate, LM2 Mill Finish, LM2 Aluminium Extruded Plate, LM2 Aluminium Plate and LM2 Aluminium Plate in China.
LM2 Aluminium Plate Suppliers in UNS A9LM2 Aluminium Plate stockist in China, LM2 Aluminium Corrugated Plate Suppliers in Best Price of EN AW LM2 H14 Aluminium Plate
You may intrested in:
- LM2 Aluminium Chequered Plate
- LM2 Aluminium Checker Plate
- LM2 Aluminium Diamond Plate
- LM2 Aluminium Tread Plate
Standard Dimensions of LM2 Aluminium Plate
Standard dimensions (a x b) of Aluminium LM2 Plate
Aluminium LM2 Plate up to 9.9 mm
2.000 x 1.000 mm
2.500 x 1.250 mm
3.000 x 1.500 mm
Oversize Aluminium LM2 Plate
4.000 x 2.000 mm
6.000 x 2.500 mm
8.000 x 2.500 mm
Other dimensions on request
LM2 Aluminium Plate Suppliers in China, LM2 Aluminium Plate Supplier Singapore, Dealer & Distributor of All LM2 Aluminium Alloy Plate Grades, Stockholder of LM2 Aluminium Plate 1mm
| Aluminium Alloy | ASTM B209 LM2 |
| Aluminium LM2 Plate Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium LM2 Plate Thickness | 0.5mm-150mm |
| Aluminium LM2 Plate Width | 500-2000mm |
| Aluminium LM2 Plate Length | to clients’ requirement |
| Aluminium LM2 Plate Coating | Polyester, Fluorocarbon, polyurethane and epoxy coating |
| LM2 Aluminium Plate Coating finish | PVDF, POLYESTER(PE) |
| Aluminium LM2 Plate Surface | Polished, hair line, brush, sand blast, checkered, embossed, etching, etc. Mill finish, Bright finish, paper interleaved, one side film, both sides film. |
| Aluminium LM2 Plate Gloss | Meet the customer requirement |
| Total coating thickness of Aluminium LM2 Plate | PVDF coating: More than 25 micron; Polyester coating: More than 18 micron |
| Aluminium LM2 Plate Coating hardness | (pencil hardness) more than 2H |
| Aluminium LM2 Plate Coating adhesive | No lower than1st grade |
| Aluminium LM2 Plate Impact resistance | No cracking or peeling (50kg/cm, ASTMD-2794: 1993) |
| Aluminium LM2 Plate Flexibility (T-bend) | 2T |
| Aluminium LM2 Plate MEK resistance | More than 10 |
| Available Aluminium LM2 Plate Stock Sizes | 1ft x 1ft, 1ft x 2ft, 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size or Custom Shape. |
| Aluminium LM2 Plate Delivery Time | 30-60 days after receiving the prepayment |
| Aluminium LM2 Plate Packaging Details | Standard export package. One pallet is about 2-3 ton.Two steel belts in width and three in width. One 20GP container can load about 18-20 tons Aluminium LM2 Plate. One 40GP container can load about 24 tons Aluminium LM2 Plate |
| ASTM B209 Alloy LM2 Plate Outer packing | Export standard, wooden pallet |
| Bottom side Aluminium LM2 Plate is coated with protective polyester material, thickness more than 6 micron | |
| We Export Aluminium LM2 Plate to | Singapore, Indonesia, Ukraine, Korea, Thailand, Vietnam, Saudi Arabia, Brazil, Spain, Canada, USA, Egypt, Iran, China, Kuwait, Dubai, Oman, Kuwait, Peru, Mexico, Iraq, Russia, Malaysia, etc. |
Types of LM2 Aluminium Plate Manufacturer in China
| LM2 Aluminium Plates Product Range | ||||
|---|---|---|---|---|
| Alloy No. | Thickness (mm) |
Width (mm) |
Length (mm) |
Temper |
| LM2 Aluminium Plate | 0.2-5.0 | 20-2200 | 20-8000 | O, H12, H22, H14, H16, H18, H24, H26 |
Standard Specification of LM2 Aluminium Plate
Standards and specifications by country
Al Si10 Cu2, BS 1490, LM 2; Aluminium
| Specification | Alloy | Temper | Company |
|---|---|---|---|
| Europe | |||
LM2 Aluminium Plate Sizes
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
LM2 Aluminium Plate Weight Chart
Width: 1.000 mm | Length: 2.000 mm
| Product | Thickness | Weight |
|---|---|---|
| LM2 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| LM2 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| LM2 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| LM2 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| LM2 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| LM2 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| LM2 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| LM2 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| LM2 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| LM2 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| LM2 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| LM2 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| LM2 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| LM2 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| LM2 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| LM2 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| LM2 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| LM2 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| LM2 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| LM2 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| LM2 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| LM2 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| LM2 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| LM2 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
LM2 Aluminium Plate Chemical Composition
Chemical Composition
| % | |
|---|---|
| Copper | 0.7 – 2.5 |
| Magnesium | 0.30 max |
| Silicon | 9.0 – 11.5 |
| Iron | 1.0 max |
| Manganese | 0.5 max |
| Nickel | 0.5 max |
| Zinc | 2.0 max |
| Lead | 0.3 max |
| Tin | 0.2 max |
| Titanium | 0.2 max |
| Aluminium | Remainder |
| Others: total | 0.50 max |
Aluminium LM2 Plate Mechanical Properties
LM2-M
| Chill Cast | Die Cast | |
|---|---|---|
| 0.2% Proof Stress (N/mm 2 ) | 90-130 | 130 |
| Tensile Stress (N/mm 2 ) | 150 -200 | 300 |
| Elongation (%) | 2-3 | 1-3 |
| Impact Resistance Charpy (Nm) | – | 2.9 |
| Brinell Hardness | 65-90 | 65-90 |
| Endurance Limit(5×10 7 cycles;N/mm 2 ) | 70-100 | 70-100 |
| Modulus of Elasticity (x10 3 N/mm 2 ) | 71 | 71 |
| Shear Strength (N/mm 2 ) | 200 | 200 |
The values shown are typical ranges for chill cast test bars produced to the requirement of B.S. 1490. Die cast values obtained on 6mm test bars. Those in heavier type are minimum specification values.
(Al-Si10Cu2)
Colour Code -RED/WHITE
This alloy conforms to BS 1490:1988 LM2.
Material supplied as standard in 7kg aluminium ingot.
Aluminum Alloy Heat Treatment Temper Designations
Basic Aluminum Heat Treatment Designations
- F As Fabricated
- O Annealed
- H Strain Hardened
- W Solution Heat Treated
- T Solution Heat Treated
Heat Treating T Temper Codes for Aluminium LM2 Plates
- T1 – Cooled from an elevated temperature shaping process and naturally aged to a substantially stable condition.
- T2 – Cooled from an elevated temperature shaping process, cold worked, and naturally aged to a substantially stable condition.
- T3 – Solution heat treated, cold worked, and naturally aged to a substantially stable condition.
- T4 – Solution heat treated, and naturally aged to a substantially stable condition.
- T5 – Cooled from an elevated temperature shaping process then artificially aged.
- T6 – Solution heat treated then artificially aged.
- T7 – Solution heat treated then overaged/stabilized.
- T8 – Solution heat treated, cold worked, then artificially aged.
- T9 – Solution heat treated, artificially aged, then cold worked.
- T10 – Cooled from an elevated temperature shaping process, cold worked, then artificially aged.
Additional digits may be used after the first T temper digit to indicate subsequent stress relieving by processes such as stretching, compressing, or a combination.
H Temper Strain Hardening Codes for Aluminium LM2 Plates
- H1 – Strain hardened only
- H2 – Strain hardened and partially annealed
- H3 – Strain hardened and stabilized
- H4 – Strain hardened and lacquered or painted. This assumes that thermal affects from the coating process affect the strain hardening; seldom encountered.
LM2 Plate Packing Information of Aluminum plate :
Application of LM2 Aluminium Plate
LM2 Aluminium Plate is the most widely used form of Industrial Aluminium. LM2 Aluminium Plates find applications in various industries such as manufacturing cans and packages, transportation, home appliances, building and construction.
