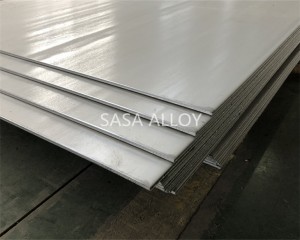

Nickel 201 Sheet Plate
Nickel 201 price in China, Alloy 201 material stockist in China, Nickel 201 Products suppliers, Nickel 201 material distributor in China, Alloy 201 material dealers in China.
The pure Nickel 201 Plate stock by Sasa alloy include the grades NR-Ni 99 (Alloy 201 Plate, 2.4068), R-Ni 99.2 (Alloy 200, 2.4066), BR-Ni 99.6 (2.4060) and LC-Ni 99.6 (2.4061), all with chemical composition in accordance with DIN 17740. These Nickel 201 Sheets are resistant to the corrosive influences of most media and are impervious to severe corrosion types, such as pitting and intercrystalline corrosion. Due to Nickel 201 Coil low Carbon content, LC-Nickel 99.6 exhibits a high resistance to corrosion caused by caustic alkalis, even at elevated temperatures.
Nickel 201 plate Specification
| Alloy 201 Plate Specification | ASTM B162 UNS N02201, ASME SB162, MSRR, AMS, BS |
|---|---|
| Nickel 201 Plate Sizes | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Nickel 201 Plate Thickness | 0.1mm to 100 mm Thk |
| Nickel 201 Plate Width | 10-2500mm |
| Nickel 201 Plate Length | 2m, 2.44m, 3m, or as required |
| Nickel 201 Sheet ASTM | ASTM B162 |
| Nickel 201 Sheet AMS | AMS 5553 |
| Nickel 201 Plate Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Nickel 201 Sheet Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Nickel 201 Plate Stock in form of | Nickel 201 Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Material | JIS: N0, N2, N1, NW2200, NW2201, NW4400, NW5500, NW6002, etc DIN:H-Ni99.96, H-Ni99.95, H-Ni99.92, H-Ni99.90, H-Ni99.5, H-Ni99, etc |
| Nickel 201 Plate ASTM Standard | ASTM A162, GB/T2054, DIN177502002, ASTM B127, ASTM B435, ASTM B582, ASTM B575, ASTM B168, ASTM B443, ASTM B463, ASTM B626, ASTM B536, etc |
| Nickel 201 Plate Dimensions | As the customer required |
| Why choose Hitesh Steel |
|
| Nickel 201 profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
AMS 5553 Nickel 201 Sheet, Strip Stock List
| Alloy | Product form | Dimension |
|---|---|---|
| NICKEL 201 (99.0 Ni min) | Strip; annealed | 0.10×150 mm x coil, 0.13 kg/m |
| NICKEL 201 (99.0 Ni min) | Strip; annealed | 0.125×139 mm x coil, 0.154 kg/m |
| NICKEL 201 (99.4 Ni min) | Strip; annealed | 0.15×200 mm x coil, 0.27 kg/m |
| NICKEL 201 (99.0 Ni min) | Strip; cold rolled, annealed | 0.20×99.5 mm x coil, 0.177 kg/m |
| NICKEL 201 (99.0 Ni min) | Strip; annealed | 0.20×200 mm x coil, 0.36 kg/m |
| NICKEL 201 (99.0 Ni min) | Strip; cold rolled, annealed | 0.30×200 mm x coil, 0.54 kg/m |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 0.5x1000x2000 mm, 9.0 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 0.6x1000x2500 mm, 14.7 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 0.7x1000x2500 mm, 17.0 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 0.8x1000x2000 mm, 13.9 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 1.0x1000x2000 mm, 18.0 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 1.5x1000x2000 mm, 27.8 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, annealed | 2.0x1000x2000 mm, 36.3 kg/pc |
| NICKEL 201 (99.0 Ni min) | Sheet; cold rolled, soft annealed, descaled, sheared | 4.0x1200x3000 mm, 130 kg/pc |
| NICKEL 201 (99.0 Ni min) | Plate; hot rolled, soft annealed, descaled, sheared | 5.0x2000x4000 mm, 356 kg/pc |
| NICKEL 201 (99.0 Ni min) | Plate; hot rolled, descaled, annealed | 6.0x2000x4000 mm, 463 kg/pc |
| NICKEL 201 (99.0 Ni min) | Plate; hot rolled, soft annealed, descaled | 10.0x2000x3000 mm, 554 kg/pc |
| NICKEL 201 (99.0 Ni min) | Blech; warmgewalzt, weichgegl¼ht, entzundert | 10.0x1500x2000 mm |
| NICKEL 201 (99.0 Ni min) | Plate; hot rolled, soft annealed, descaled | 10.0x2000x6000 mm |
| NICKEL 201 (99.0 Ni min) | Plate; hot rolled, soft annealed, descaled | 10.0x935x6000 mm |
Nickel 201 Plate, Sheet & Coil Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Nickel 201 Sheets, Plates & Coils Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Equivalent Grades for 201 Nickel Sheets, Strips & Plates
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Applications:
Sasa alloy is super special steel products including Nickel 201 plate are suitable for Plant manufacturing, Machine engineering, Power generation and Powerplant etc. We are supplying best quality Nickel 201 plate to our clients globally.
