Nimonic Alloy C263 Sheet Plate

Short Description:

Nimonic Alloy C263 is a precipitation-hardenable nickel-chromium-cobalt alloy that is primarily used in high-temperature applications. It offers excellent corrosion and oxidation resistance, making it suitable for use in gas turbine components, industrial furnace applications, and various high-temperature structural components.


  • Specification: AMS 5872
  • Thickness: 0.1mm to 100 mm
  • Width: 10-2500mm
  • Finish: 2B, 2D, BA NO(8)
  • Product Detail

    Product Tags

    Nimonic C263 is known for its high strength and creep resistance at temperatures up to 980°C (1796°F). This makes it an ideal choice for applications that require strength and reliability in high-stress environments. It also exhibits good fabrication characteristics, enabling it to be easily formed and machined.

    Specifications of Nimonic Alloy C263 PLATES / SHEETS:
    Grade Nimonic C263
    Standard AMS 5872
    Specialize
    shim Sheet, Perforated sheet, B. Q. Profile.
    Size 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH 8 2500 MM TO 12500 MM LENGTH
    Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
    Form Sheets, Plates, Coils, Slatting Coils, Perforated Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
    Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
    Application Turbine
    Technology ESR Electro Slag Re-melting
    Type Of Nimonic C263 Plates / Sheets:

    Nimonic 90 plate sheet

    105 Plates Nimonic 115 plate
    Nimonic 90 Plate Nimonic 105 Plate

    Nimonic 115 plate

    EQUIVALENT GRADES OF Nimonic C263 PLATES / SHEETS:
    STANDARD WERKSTOFF NR. UNS
    Nimonic C263 2.4650 N07263
    CHEMICAL COMPOSITION OF  Nimonic C263 PLATES / SHEETS/COIL:
    Grade C Mn Si S Fe Ni Mo Ti Cu Cr Al P B Co
    Nimonic C263 0.04-0.08 0.60 0.40 0.007 0.70 remainder 5.6-6.1 1.9-2.4 0.20 19.00 – 21.00 0.3-0.60 0.015 0.0050max 19-21
    Nimonic Alloy C263 Sheet Plate Mechanical Properties:
    MaterialSheet  Temperature Yield strength 0.2%(MPa)
    Tensile Strength(MPa)
    Elongation (%)
    Hardness HV
    Nimonic C263 SheetSolution Treated (AMS 5872 / BS  HR206) RT - - - 22.5 max
    Nimonic C263 SheetHeat Treated (AMS 5872 / BS  HR206) RT  580 (typical)   973 (typical) 39  -
    Nimonic C263 SheetHeat Treated (AMS 5872 / BS  HR206)  780 403 (min)   541 (min) -
    Nimonic C263 Plates Physical Properties:
    Density 0.302 lb/in3 - - - - -
    Melting Range 2372-2471°F - - - - -
    Temperature 400 800 1000 1200 1400 1800
    Coefficient* of Thermal
    Expansion,
    in/in'F x 10-6
    6.7 7.4 7.7 8.1 8.7 10.2
    Why Choose Us:

    1. You can get the perfect material according to your requirement at the least possible price.
    2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
    3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
    4. We guarantee to give a response within 24hours(usually in the same hour)
    5. Provide SGS TUV report.
    6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
    7.Provide one-stop service.

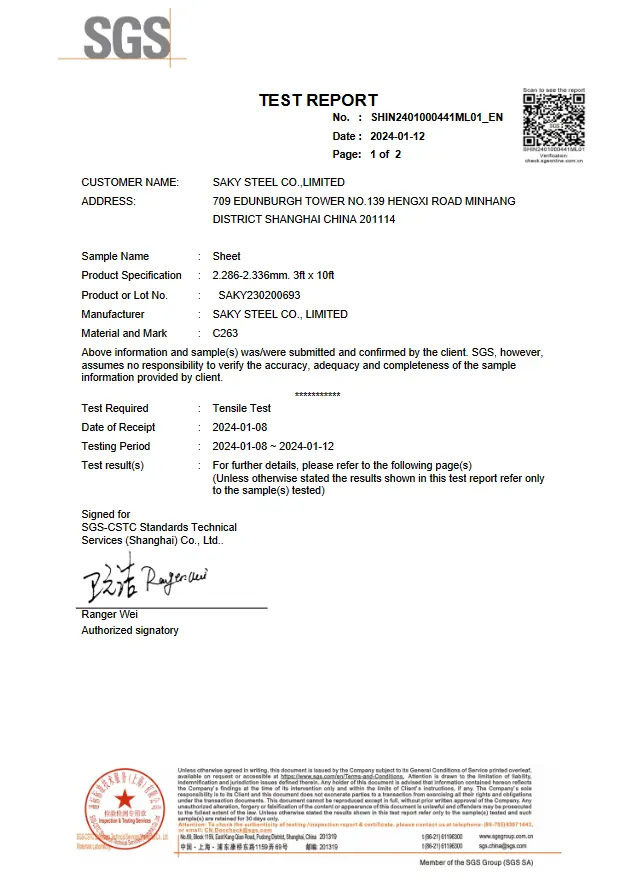

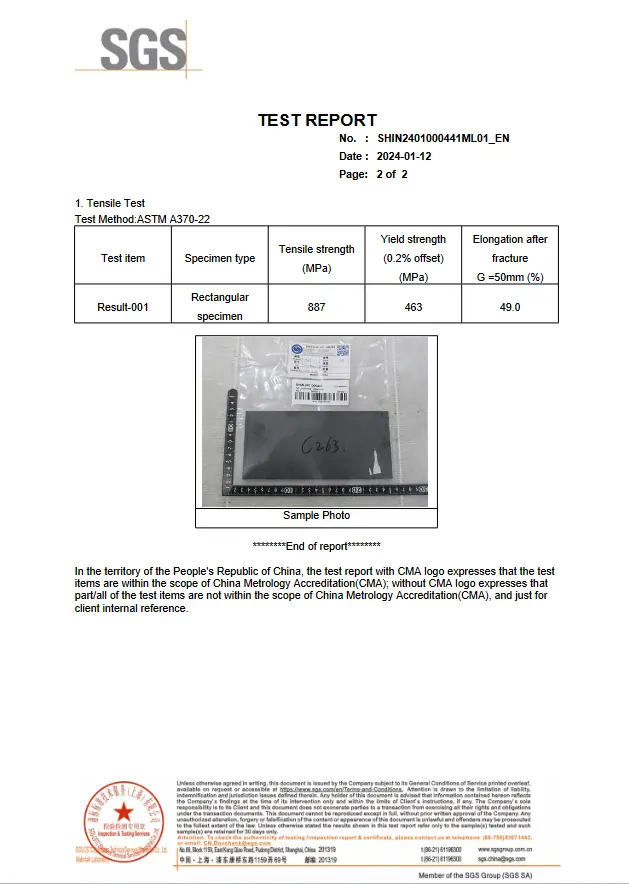

    Nimonic C263 Sheet Plate SGS Test Report:
    5b7b544d77c076589493a47d0b04acf
    c4dead94ab89f243c507a557d09ed8b
    SASA ALLOY'S Quality Assurance:

    1. Visual Dimension Test
    2. Mechanical examining like tensile, Elongation and reduction of area.
    3. Impact analysis
    4. Chemical examination analysis
    5. Hardness test
    6. Pitting protection test
    7. Penetrant Test
    8. Intergranular Corrosion Testing
    9. Roughness Testing
    10. Metallography Experimental Test

    Packing:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    2. Sasa alloy’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

    Nimonic C263 Sheet    C263 sheet
